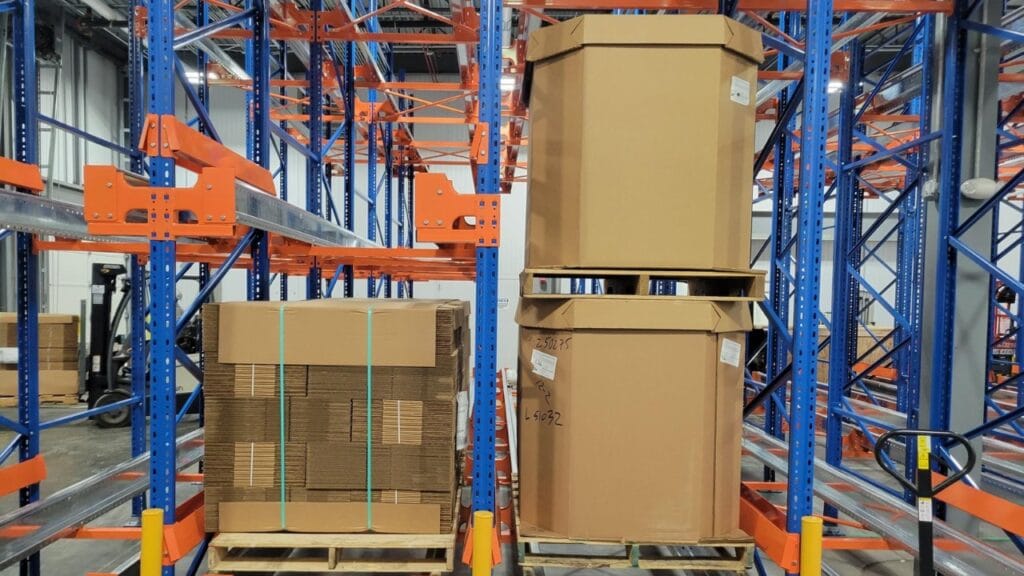

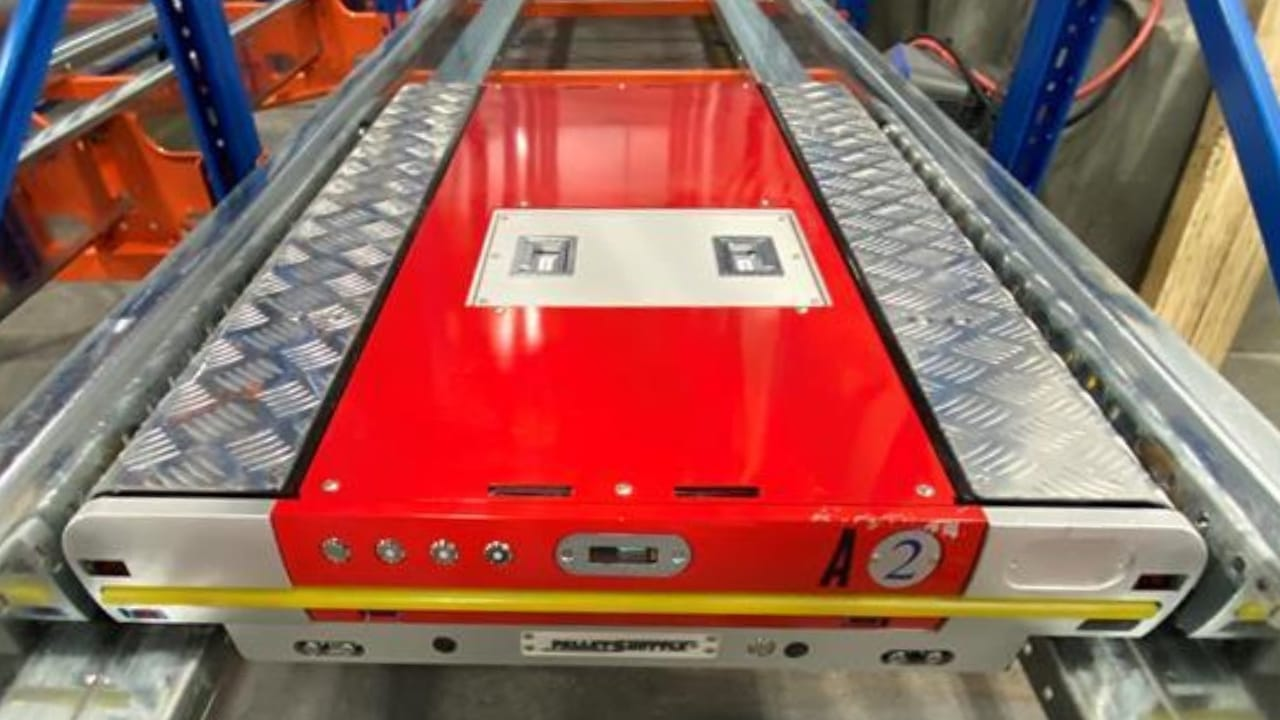

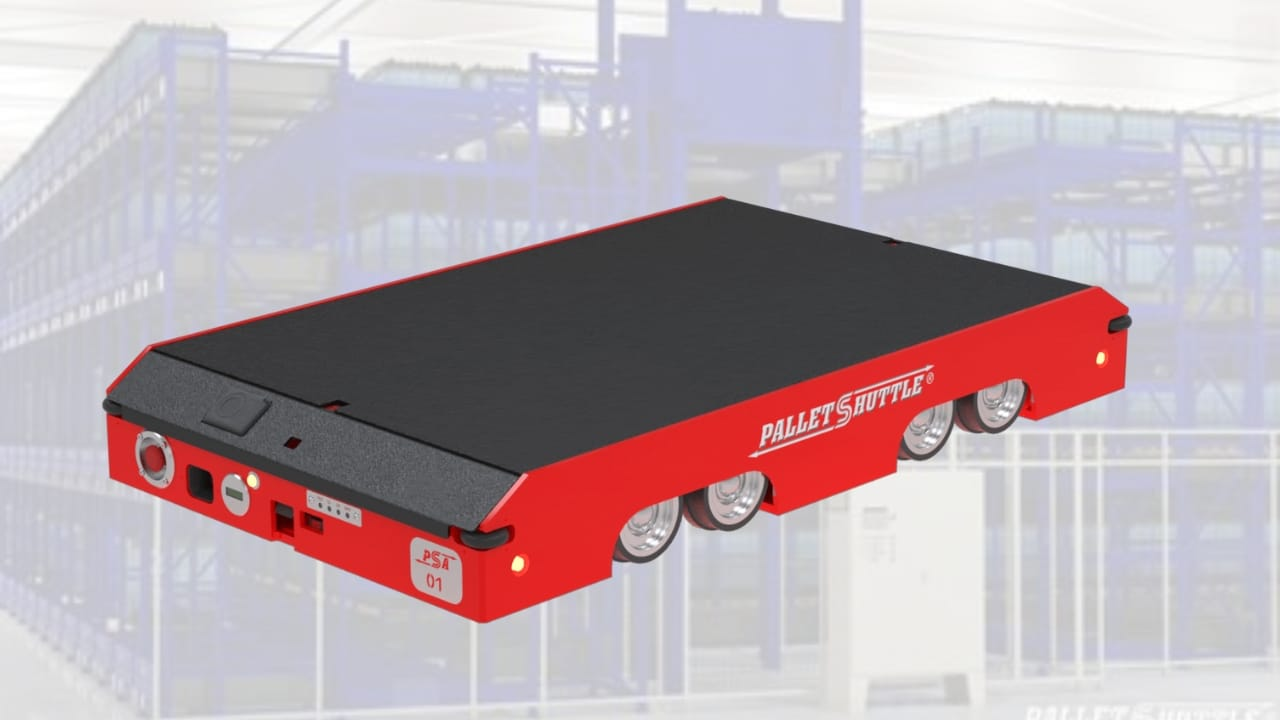

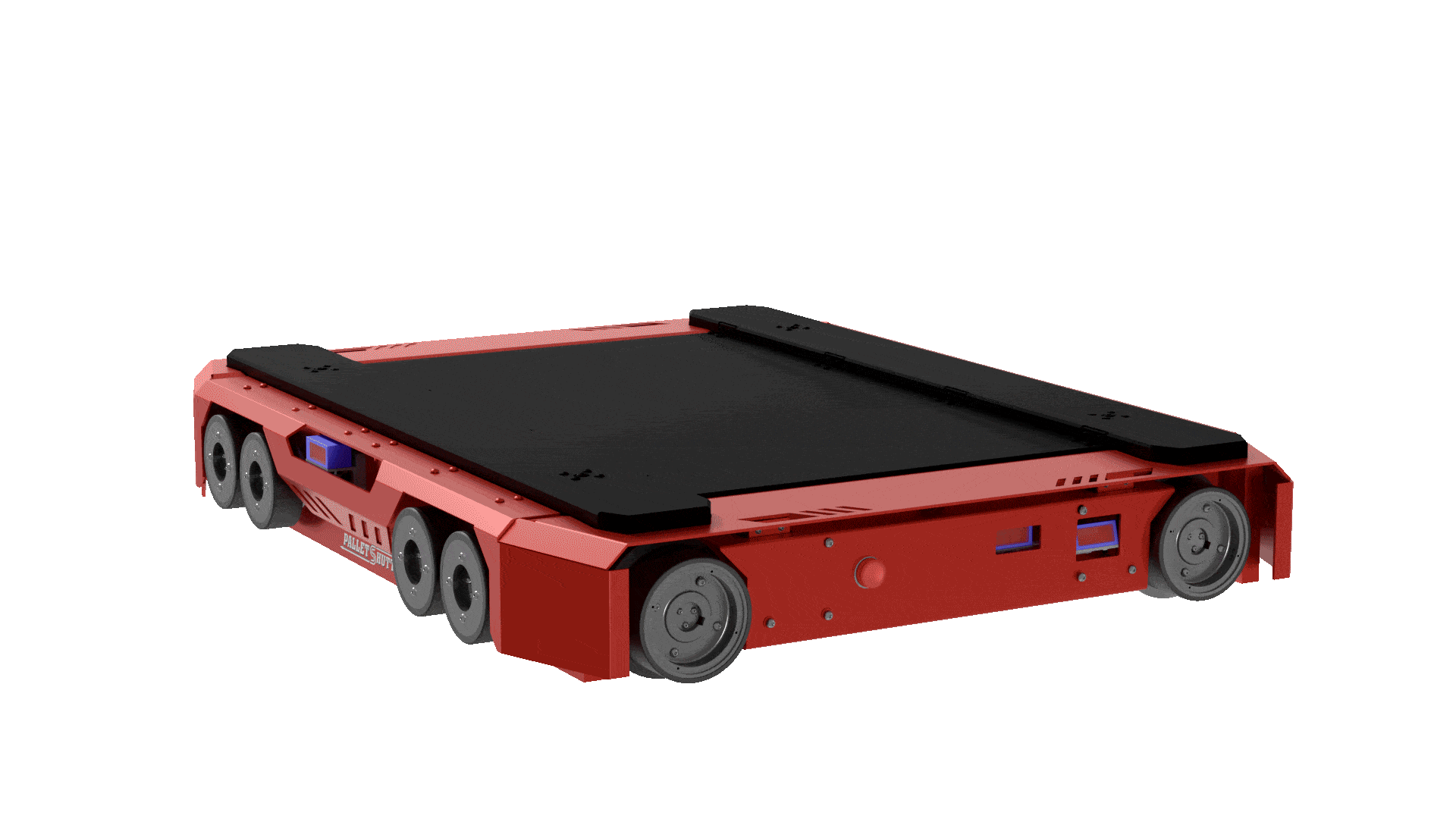

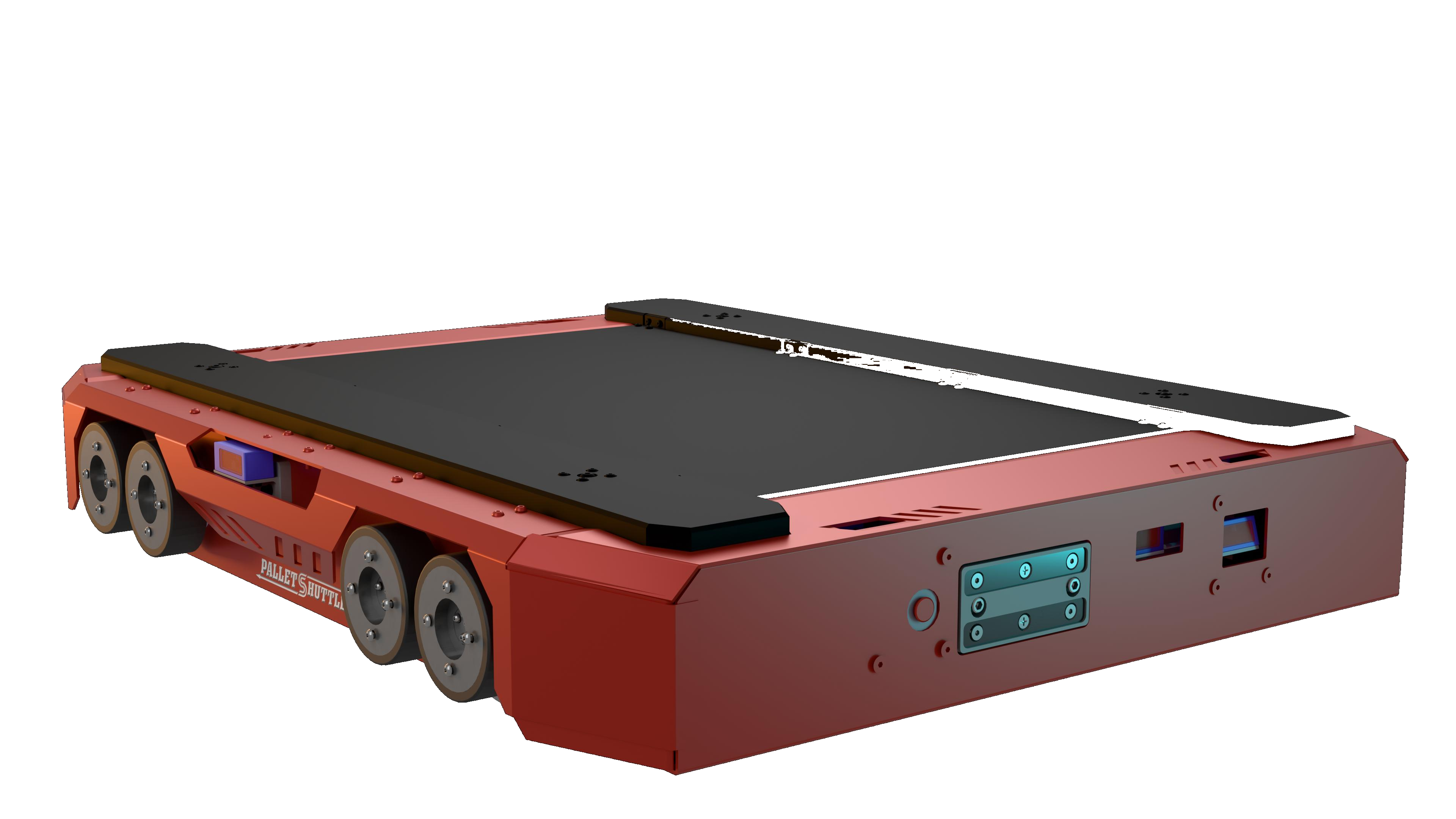

What is a Pallet Shuttle System?
Pallet Shuttle™ is a fully programmable deep lane storage and retrieval system used to transport pallets within a racking structure for maximum storage and throughput of bulk stored items.
- Pallet Shuttle in Action
- System Information
- Specifications
- FAQ
The internationally proven and cost effective Pallet Shuttle™ automated storage and retrieval system provides the warehousing industry with enhanced storage capacity and reduced labor costs.
The Pallet Shuttle™ provides maximum control, correct positioning and smooth transitioning to increase throughput and reduce product and pallet damage.
System Applications:
- Food and beverage bulk storage distribution and manufacturing
- Cold storage, blast cells and 3PL distribution
- Existing racking system retrofitting and enhancements
Technical Specifications
- Power Supply - (Electrical Batteries Li-ion)
- Maximum carring capacity - (1500 kg/3306 lbs.)
- Speed when loaded - (99 - 108 ft/min)
- Speed when empty - (207 - 217 ft/min)
- Standard working time - (8 to 20 hrs.)
Batteries
- Battery type - (Lithium - IonMNC)
- Battery capacity - (Ah - 53)
- Batteries Voltage - (V - 24)
- Charging time at normal temperature 100% recharged in 5.5hr
- Number of Battery packs - (nr 1)
- Batteries Charger Voltage (VAC/HZ) USA 115/60
RF Controller
- Remote Controller type - (Radio Frequency)
- Remote Controller Power Supply - (Batteries)
FAQ
Q: We already have racks, can our current system be retrofitted to work with the Pallet Shuttle.
A: In some cases yes, we first need to assess your current rack system.
Q: What is the battery charging time?
A: 3 hrs for 80% and 5.5 hours for a full 100 percent charge.
Q: What type of batteries does the Pallet Shuttle uses? A: The Pallet Shuttle uses Lithium Batteries.
Q: Who may operate the Pallet Shuttle?
A: Only a certified Forklift operator should be allowed to run the Pallet Shuttle.
Q: What is the maximum amount of Pallets that the Pallet Shuttle can store before recharging it again?
A: There are many factors that affect how many pallets your Pallet Shuttle can store, but from previous clients, you can store up to 60 pallets per hour (estimated). Your results may vary depending on weight and size.
Q: What is the Standard Operational Enviornment (SOE) for the Pallet Shuttle?
A: The standard operational environment (ST) for the Pallet Shuttle is: between 41˚F and 113˚F and the Below Zero (BZ) is between 39.2˚F and -22˚F.
Q: Do you supply the Battery Charger?
A: Yes, Pallet Shuttle supplies you with one battery charger.
Q: What Happens when the Pallet Shuttle is left unattended?
A: The Pallet Shuttle’s Remote Control shuts off and the Pallet Shuttle goes into standby mode after three minutes.
Q: Can you operate the Pallet Shuttle in Manual mode?
A: Yes, but only experienced Pallet Shuttle operators are advised to operate the Pallet Shuttle in manual mode.
Features and Benefits
- Put away, store and retrieve pallets to unlimited depths without pitch or driving into racking – provides better space utilization and higher throughput.
- Full selectivity of different skus at any opening.
- Reduce product and forklift damage due to less handling.
- Pallet Shuttle™ System can be retrofitted into existing drive-in or pallet flow racking.
- Suitable for ambient, chilled or freezer applications.
- Hannibal Industries Inc. provides turnkey design, manufacturing and in-house installation services.
